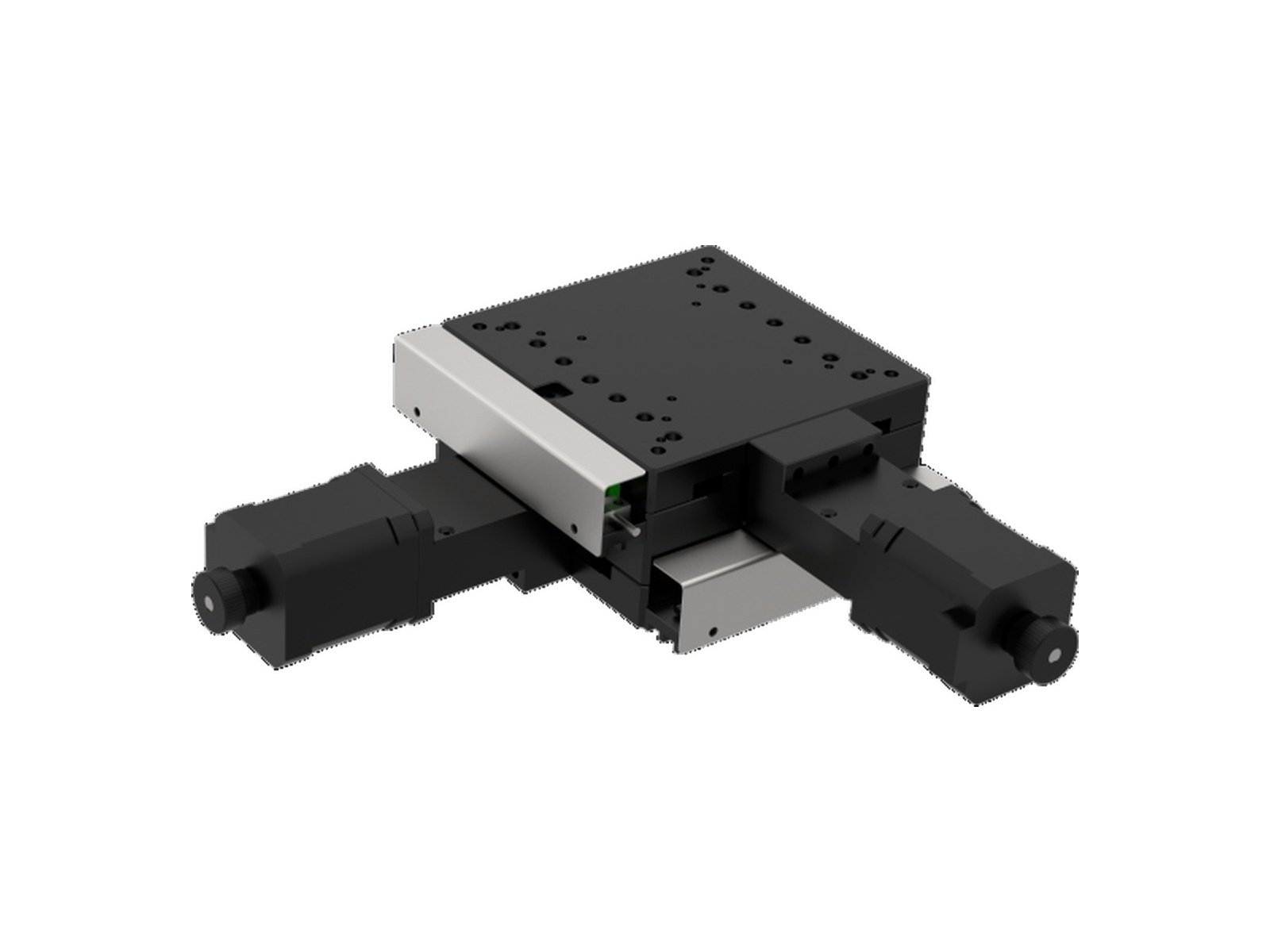

HXY Precision XY Alignment Stage
The HXY Series is a compact XY positioning stage designed for precision adjustment, alignment and motion positioning in inspection, assembly, optics, automation and laboratory equipment. The series combines fine screw-driven travel with cross-roller guidance and multiple platform sizes for different load and travel requirements.
Key Features
- Two-axis XY positioning for precise planar alignment.
- Cross-roller guide structures for stable, repeatable motion on applicable models.
- Multiple platform sizes and travel ranges to suit different workspace requirements.
- Stepper-motor driven configurations for automated positioning.
- Aluminum alloy construction with black anodized finish.
- Designed for integration into precision automation and inspection systems.
HXY Series Model Range
| الطراز | Table Size | Travel | Lead Screw | Max. Speed |
|---|---|---|---|---|
| HXY30-120S | 120 × 120 mm | ±15 mm | 06/01 mm | 10 mm/s |
| HXY50-110K | 110 × 110 mm | ±25 mm | 08/02 mm | 20 mm/s |
| HXY50-155S | 155 × 155 mm | ±25 mm | 08/02 mm | 20 mm/s |
| HXY100-300K | 300 × 300 mm | ±50 mm | 08/02 mm | 20 mm/s |
| HXY150-250S | 250 × 250 mm | ±75 mm | 08/02 mm | 20 mm/s |
Technical Specifications
| Positioning axes | X + Y |
| Repeatability | <0.03 to <0.05 mm depending on model |
| Parallelism | ±0.04 to ±0.08 mm depending on model |
| Static center load | 20 to 80 kg depending on model |
| Dynamic center load | 15 to 100 kg depending on model |
| Drive | Stepper motor, size 28 or 42 depending on model |
| Material | Aluminum alloy / black anodized finish |
التطبيقات
The HXY Series is suitable for optical alignment, inspection systems, precision assembly, laboratory equipment, dispensing, machine vision and automated positioning systems.
Selection & Quote
Select the HXY model according to table size, travel, load capacity, lead screw and drive configuration. Contact QIANGDELI for application-specific configuration and quotation.
