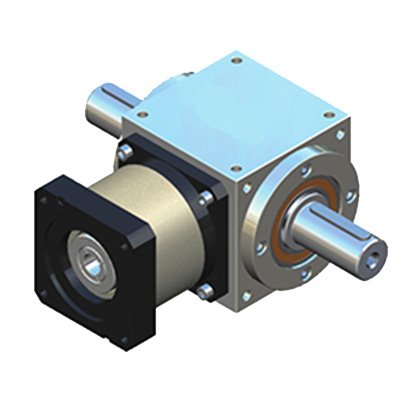

DPZ Precision Right-Angle Gearbox
The DPZ Series is a precision right-angle gearbox for compact motion transmission where a 90-degree change of direction, low backlash and reliable servo integration are required. The catalog provides four configurations: DPZD, DPZS, DPZK and DPZKK.
Key Features
- Precision right-angle transmission for compact machine layouts.
- Four configurations: DPZD, DPZS, DPZK and DPZKK.
- Reduction ratios: 1:2, 1:3 and 1:5.
- Backlash: 8 arcmin.
- Rated input speed: 1500 rpm; maximum input speed: 2000 rpm.
- IP65 protection.
Technical Specifications
| Configurations | DPZD / DPZS / DPZK / DPZKK |
| Frame sizes | 42 / 60 |
| Reduction ratio | 1:2 / 1:3 / 1:5 |
| Rated output torque | 14 Nm (42 size) / 22 Nm (60 size) |
| Maximum output torque | 42 Nm (42 size) / 65 Nm (60 size) |
| Backlash | 8 arcmin |
| Rated / maximum input speed | 1500 / 2000 rpm |
| Protection | IP65 |
Typical Applications
Servo-driven automation, robotics, compact positioning systems, indexing mechanisms and machinery where the drive direction must be turned through 90 degrees.
Selection & Quote
Select the DPZ configuration, frame size and reduction ratio required for your application. Contact QIANGDELI for exact dimensions, motor compatibility and quotation.
