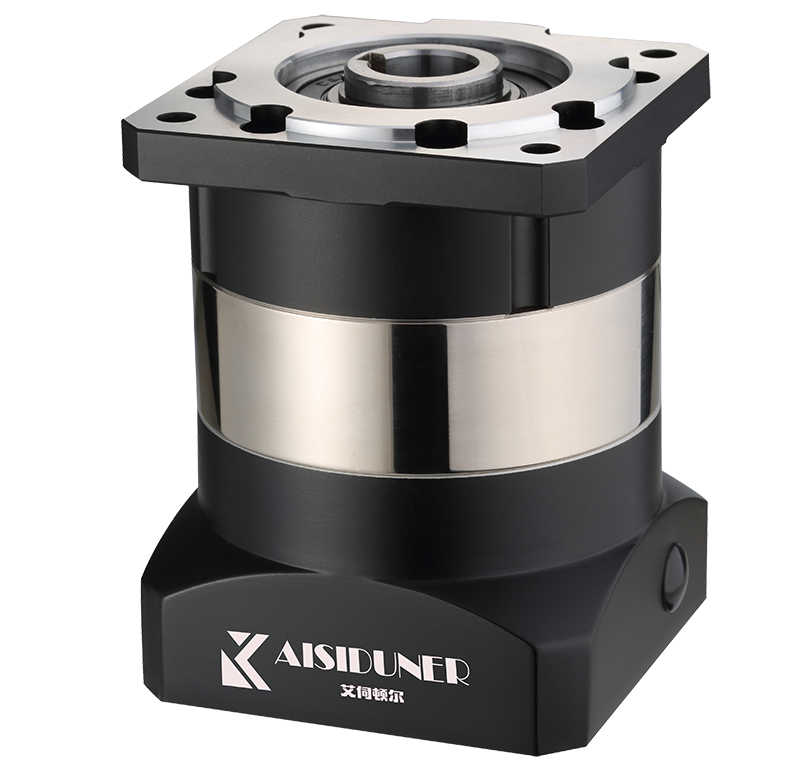

DRN Standard Planetary Gearbox
The DRN Series is a standard planetary gearbox with bore output for easier installation in compact servo and automation systems.
Key Features
- Bore output design for easy installation.
- Round-flange output with threaded reverse connection and standardized dimensions.
- Comprehensive input connection options.
- Single-cantilever spur-gear transmission structure.
- Smooth and quiet operation.
- Input shaft keyway available.
- Backlash: P1 ≤8 arcmin / P2 ≤16 arcmin.
Model Range
DRN60 / DRN80 / DRN90 / DRN120 / DRN160, with catalog reduction ratios from 3 to 100 depending on frame size.
Technical Specifications
| Frame sizes | 60 / 80 / 90 / 120 / 160 |
| Output | Bore output |
| Gear type | Spur gear |
| Backlash | P1 ≤8 arcmin; P2 ≤16 arcmin |
| Protection | IP65 |
Typical Applications
Compact servo drive systems, robotics, automation equipment, rotary positioning and indexing applications where a bore output simplifies installation.
Selection & Quote
Select the required frame size and reduction ratio. Contact QIANGDELI for exact model selection and quotation.
