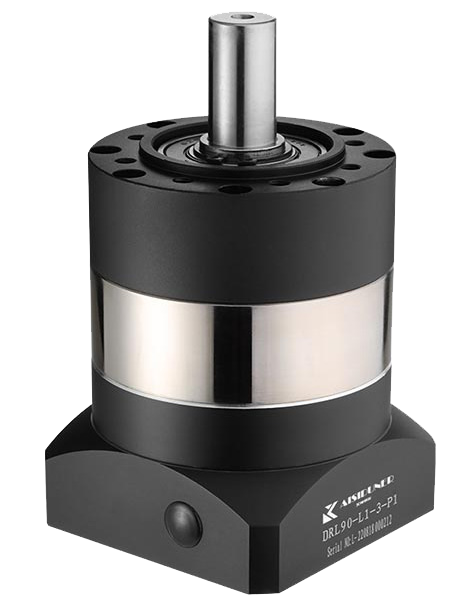

DRL Standard Planetary Gearbox
The DRL Series is a standard planetary gearbox with round-flange output and threaded reverse connection for compact servo and industrial automation systems.
Key Features
- Round-flange output with standardized dimensions.
- Flexible input connection options.
- Single-cantilever spur-gear transmission structure.
- Smooth and quiet operation.
- Input shaft keyway available.
- Backlash: P1 ≤8 arcmin / P2 ≤16 arcmin.
Model Range
DRL40 / DRL60 / DRL80 / DRL90 / DRL120 / DRL160, with catalog reduction ratios from 3 to 100 depending on frame size.
Technical Specifications
| Frame sizes | 40 / 60 / 80 / 90 / 120 / 160 |
| Output | Round flange with threaded reverse connection |
| Gear type | Spur gear |
| Backlash | P1 ≤8 arcmin; P2 ≤16 arcmin |
| Protection | IP65 |
Typical Applications
Servo motor transmission, robotics, positioning equipment, automation machinery and packaging systems.
Selection & Quote
Select the required frame size and reduction ratio. Contact QIANGDELI for exact model selection and quotation.
